Steel Grating / Bar Grating
Product Information

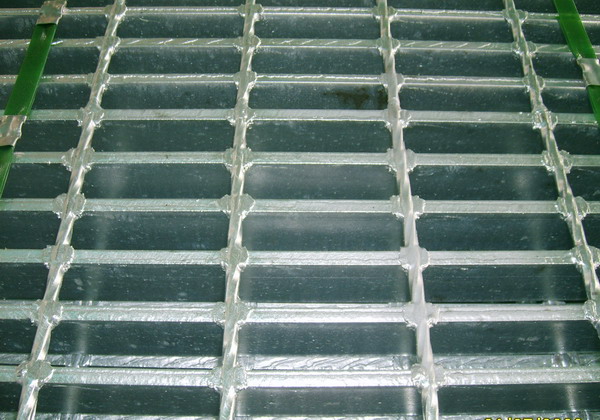

The 6x6mm or 5x5mm cross bars are electro-forge welded to the bearing bars by a patented process that combines hydraulic pressure and electric current. This welding process results in a strong, durable grating perfectly suited for a wide range of applications.
|
Steel Grating Standard |
|
|
Steel Grating Standard |
Steel Standard |
Galvanizing Standard |
|
China Standard |
YB/T 4001.1-2007 |
GB700-88 |
GB/T13912-2002 |
|
USA Standard |
ANSI/NAAMM (MBG531) |
ASTM (A36) |
ASTM (A123) |
|
U.K. Standard |
BS4592 |
BS4360 (43A) |
BS729 |
|
Australia Standard |
AS1657 |
AS3679 |
AS1650 |
| Deutsche Standard |
DIN24537 |
DIN17100-80 |
DIN50976 |

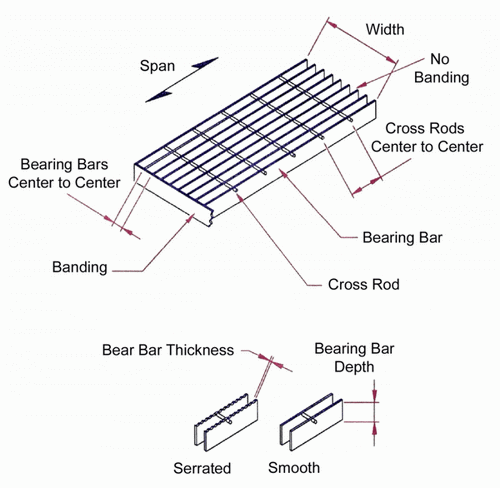

Steel Grating Series
- Bearing bar size: 20x2.0mm to 100x8.0mm

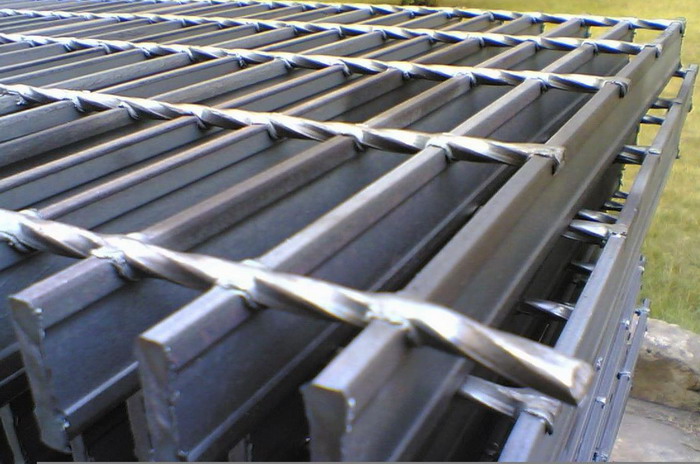

- I section Bering bar size: 25x5.0x3.0mm to 75x7.0x4.0mm
- Bearing bar pitch: 12.5mm 20mm 30mm 33mm 34.3mm 40mm 60mm etc.or as the client`s requirement
- Cross bar size: 5x5mm 6x6mm or 8x8mm
- Cross bar pitch: 30mm 38mm 50mm 76mm 100mm etc.or as the client`s requirement
- Material: Carbon Steel and Stainless Steel
- Panel Top: Plain Serrated
- Finished:Black(untreated) Painted or Hot Dip Galvanised
Panel sizes available:
- 1000x5800mm or 1000x6000mm
- 1200x5800mm or 1200x6000mm
- 2' x 20'
- 3' x 20'
- 2' x 24'
- 3' x 24'
|
